Seismic Engineering Essentials from Curtain Walls to Cladding

Seismic Engineering Essentials from Curtain Walls to Cladding

Understanding Seismic Engineering Essentials from Curtain Walls to Cladding. Engineering is a crucial aspect of constructing safe and resilient buildings in areas prone to earthquakes. In this blog post, we’ll explore the key elements of seismic engineering, focusing on curtain walls and cladding systems. Understanding these components is essential for architects, engineers, and construction professionals who aim to design secure building envelopes.

Seismic Load Requirements for Curtain Walls and Claddings

Curtain walls and claddings must endure various loads, including seismic forces. Unlike wind or snow loads, seismic forces are inertia-based. As the ground shakes, the building components try to resist movement with their inertia. This unique characteristic necessitates specific design considerations, mainly to prevent components like curtain walls from detaching and causing damage during earthquakes.

Differences Between Seismic and Wind Loads

The primary distinction between seismic and wind loads is the inertia factor. When a building’s foundation moves due to seismic activity, the structure’s fixed elements, like curtain walls, resist this movement through inertia. This resistance can generate significant forces that must be managed to prevent structural damage or failure.

Key Aspects of Seismic Design Standards

Referencing ASCE 7, a crucial document in seismic design, allows us to understand the requirements and exceptions for building components in seismic zones. ASCE 7 outlines the seismic force design criteria, notably how components must be proportioned to respond safely to expected seismic forces.

For projects in seismic-prone areas such as the West Coast or parts of the Mid-Atlantic and Midwest, engineers must ensure curtain wall systems are compliant with seismic codes and able to withstand the associated forces effectively.

Factors Affecting Seismic Design

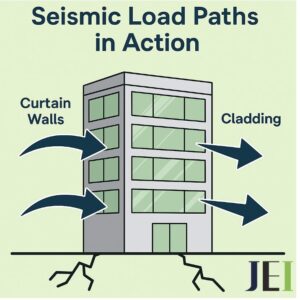

Seismic Load Requirements for Curtain Walls and Claddings

Several factors influence the seismic design of curtain walls:

• Component Importance Factor: Some components are crucial to the building’s life safety functionality. These factors determine the seismic design category (SDC) for buildings, affecting how systems should be designed.

• Seismic Design Category Exemptions: Projects located in regions with low seismic activity (categories A and B) may be exempt from certain seismic design requirements.

• Design Calculations: Engineers use specific equations from ASCE 7 to calculate seismic forces. These include redundancy factors and spectral acceleration based on the location’s seismic history.

Seismic Design and the Building Envelope

When designing the building envelope, recognizing the component operating weight and its effect on seismic loads is vital. Heavier elements will attract more seismic forces, necessitating sturdy anchorage and support.

The placement of curtain wall systems on a building also impacts their seismic design. Higher placements experience more significant acceleration effects during seismic events. Thus, engineers must design these components to account for height-based force amplifications.

Advances in Seismic Design Practices

Recent updates in ASCE 7 have introduced more rigorous criteria for calculating seismic forces, including considering dual-directional forces and concurrent vertical forces. These updates demand innovative solutions to ensure compliance without overdesigning.

Ensuring Glass Façade Integrity

In seismic regions, glass façades must maintain their integrity under movement to prevent fallout. This is verified through testing, such as racking tests, which simulate seismic movements to judge a system’s ability to handle stress without glass breach.

Designers follow a thorough checklist to validate glass components against seismic standards, considering aspects like drift capacity, capture systems, and whether glazing systems have been tested or not.

Conclusion

Seismic engineering of curtain walls and cladding systems is an intricate but critical field. As building codes evolve, understanding these detailed requirements ensures safety against nature’s unpredictable forces. For further guidance, professionals are encouraged to engage additional literature on ASCE standards and consult with seismic engineering experts.

In a rapidly changing environment, staying informed on seismic requirements can make all the difference in delivering resilient structures capable of withstanding the test of time and natural forces alike.
